Fitting functions of soil hydraulic properties

View the Project on GitHub or PyPI

View user manual on arXiv

Using unsatfit with PEST

PEST is a software package for parameter estimation and inverse analysis. It adjusts model parameters so that simulation results reproduce observed data as closely as possible. PEST is widely used in hydrology and environmental modeling, including workflows with HYDRUS (e.g. Urbina et al., 2021; Liu et al., 2021; Kaur et al., 2025).

When PEST is used together with HYDRUS, it allows estimation of soil hydraulic parameters by repeatedly running HYDRUS simulations and comparing the calculated results with observations. However, when using a hydraulic function that is available in unsatfit but is not supported directly by HYDRUS, an additional step is needed. HYDRUS reads hydraulic properties through Mater.in lookup tables, whereas unsatfit handles analytical WRF (water retention function) and HCF (hydraulic conductivity function) models and their parameters.

This is where the integration described in Using unsatfit with HYDRUS becomes important. By combining PEST, unsatfit, and HYDRUS:

In this way, inverse analysis can be performed even when the hydraulic properties are defined by functions available in unsatfit but not directly implemented in HYDRUS. This approach effectively bypasses the limitation that HYDRUS cannot directly use arbitrary analytical hydraulic functions.

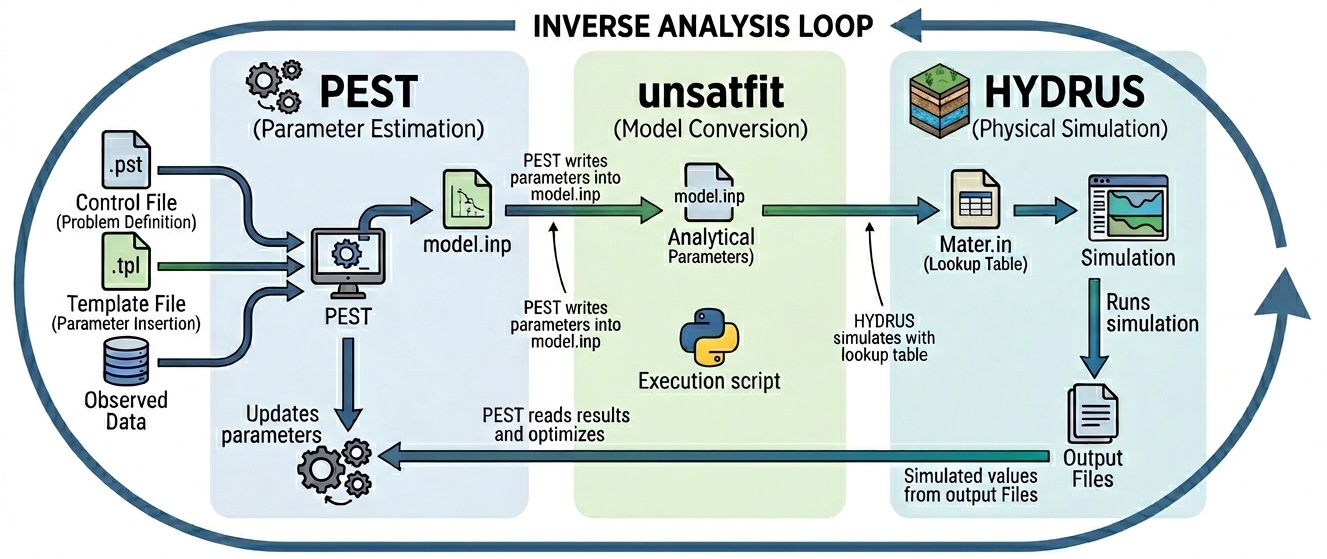

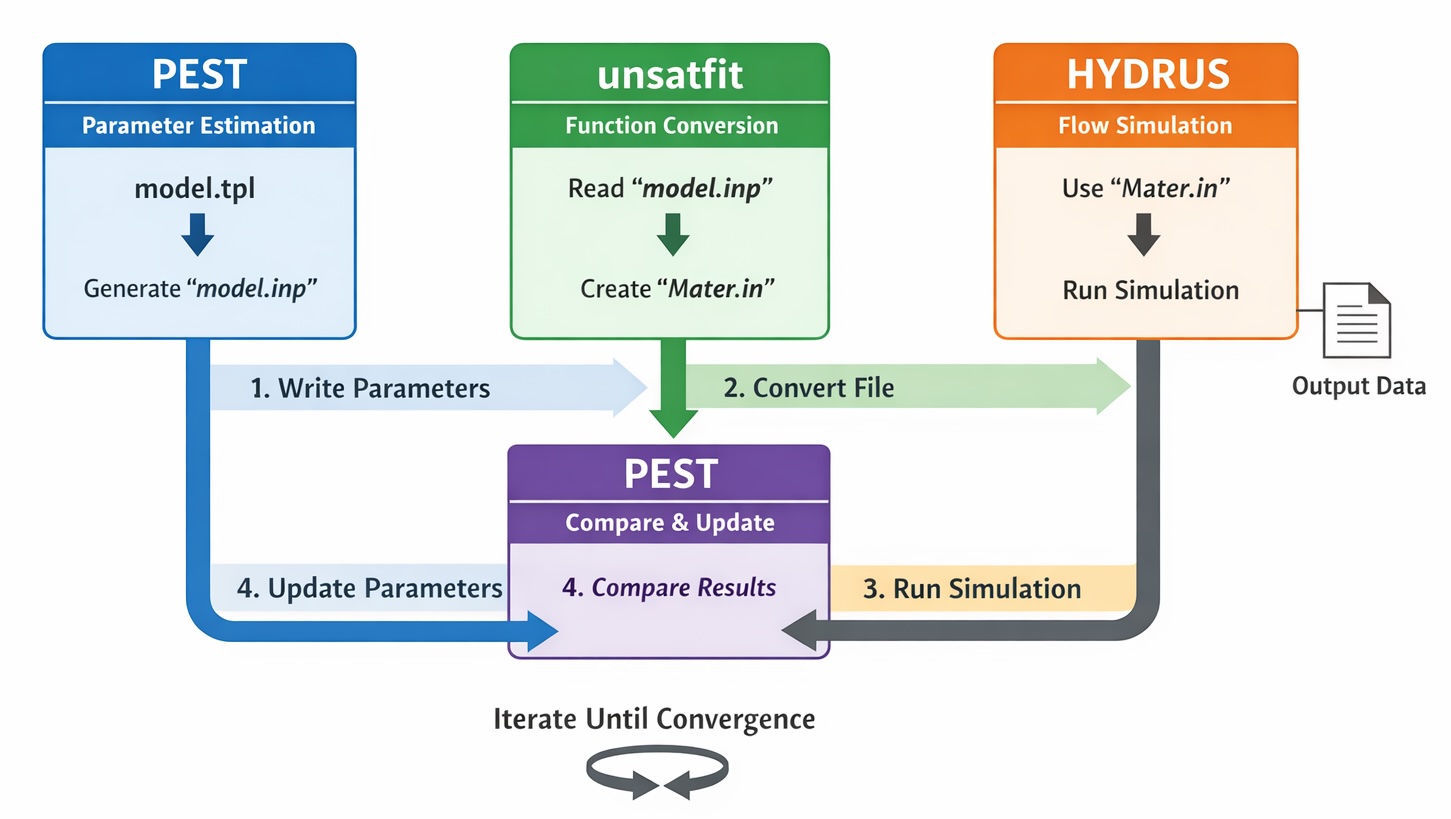

The following diagram illustrates the coupling between the three components:

The overall workflow is as follows:

  1. PEST writes parameter values into model.inp using model.tpl.
  2. unsatfit reads model.inp and generates Mater.in.
  3. HYDRUS runs a simulation using Mater.in.
  4. PEST compares simulated results with observed data and updates parameters.
  5. The cycle is repeated until convergence.

Files required by PEST

To perform inverse analysis with PEST, you need the following files:

Among these files, the parts related to the WRF and HCF are the parameter group and parameter data sections of the control file. In these sections, you specify:

In the model input/output section, specify that PEST should generate model.inp from model.tpl, for example:

* model input/output
model.tpl model.inp

With this setting, PEST creates model.inp from model.tpl by inserting the current parameter values.

Role of each file in this workflow

model.tpl

model.tpl is the PEST template file corresponding to model.inp. It defines where parameter values should be inserted.

model.inp

model.inp is the input file read by unsatfit. It contains:

In a PEST workflow, this file is generated automatically by PEST from model.tpl.

Mater.in

Mater.in is the lookup-table file used by HYDRUS. It is generated from model.inp by unsatfit.

HYDRUS output

HYDRUS generates output files (e.g., Nod_Inf.out, Obs_Node.out) that contain simulated variables such as pressure head or water content.

These files are not used directly by PEST but are read through the instruction file (.ins), which extracts the values corresponding to observations.

.ins file

The instruction file tells PEST how to read simulation results and extract observation values from HYDRUS output files (e.g., Nod_Inf.out, Obs_Node.out). In other words, the instruction file links HYDRUS output to PEST observations.

.pst file

The control file defines the entire inverse analysis problem, including parameters, observations, files, and the model command line.

Overall workflow for inverse analysis

The full procedure is as follows.

1. Prepare a HYDRUS project

First, prepare a HYDRUS project that runs correctly with a Mater.in file placed in the project directory.

In HYDRUS, specify Look-up Tables in Soil Hydraulic Model so that the hydraulic functions are read from Mater.in.

Also decide which HYDRUS output file will be used for comparison with observations, because this file will later be read by the PEST instruction file.

2. Prepare a hydraulic model for unsatfit-HYDRUS coupling

Prepare the files needed for the unsatfit-to-HYDRUS conversion as described in Using unsatfit with HYDRUS.

In particular, prepare:

If needed, these files can be created either manually or from fitted results in unsatfit, as explained in Using unsatfit with HYDRUS.

3. Edit the PEST control file

Create a PEST control file (.pst) and define the inverse problem.

In particular:

For the unsatfit-HYDRUS workflow, the important setting is:

* model input/output
model.tpl model.inp

This tells PEST to generate model.inp from model.tpl.

In the parameter data section, the parameters should correspond to the WRF and HCF parameters in the order expected by the hydraulic model.

4. Prepare the instruction file

Create an instruction file (.ins) so that PEST can extract simulated values from the HYDRUS output file.

The exact content depends on which HYDRUS output file is used and which values are compared with observations.

5. Prepare the model execution script

The conversion from model.inp to Mater.in is explained in Using unsatfit with HYDRUS. For a PEST workflow, prepare the following:

import unsatfit
f = unsatfit.Fit()
print('Running mat.py')
f.load_input(filename='model.inp')
f.save_mater(filename=r'C:\Users\Public\Documents\PC-Progress\Hydrus-1D 4.xx\Projects\Test\Mater.in')

python mat.py
"C:\Program Files (x86)\PC-Progress\Hydrus-1D 4.xx\H1D_CALC.exe" "C:\Users\Public\Documents\PC-Progress\Hydrus-1D 4.xx\Projects\Test"

* model command line
.\runmodel.bat

The execution sequence is then:

  1. PEST generates model.inp from model.tpl,
  2. PEST runs runmodel.bat,
  3. runmodel.bat runs mat.py,
  4. mat.py generates Mater.in from model.inp,
  5. runmodel.bat runs HYDRUS,
  6. HYDRUS writes output files,
  7. PEST reads the results.

Note that PEST does not directly run HYDRUS; it only executes the command specified in the control file, which orchestrates the entire workflow.

6. Run PEST

Once the .pst, .tpl, .ins, HYDRUS project, and execution script are ready, run PEST.

During inverse analysis, PEST repeats the following cycle:

  1. write parameter values into model.inp from model.tpl,
  2. execute the model command,
  3. unsatfit converts model.inp to Mater.in,
  4. HYDRUS runs using Mater.in,
  5. PEST reads simulated results using the instruction file,
  6. PEST compares simulated and observed values,
  7. PEST updates parameter values.

This cycle continues until the optimization stops according to the PEST settings.

Summary of the coupled workflow

By combining PEST, unsatfit, and HYDRUS, inverse analysis can be carried out with hydraulic functions that are available in unsatfit but not directly implemented in HYDRUS:

The key connection points are:

For details of PEST syntax and settings, refer to the official website.

Technical note: parameter conversion

As theoretically predicted, the slope of the HCF curve at the adsorption water range can often be assumed to be approximately 1.5. By applying a mathematical relationship to substitute a standard model variable (such as \(q\) or \(r\)) with this slope parameter \(a\), you can treat \(a\) = 1.5 as a constant, effectively reducing the number of free parameters in your PEST optimization by one.

For a detailed explanation of this theory and a step-by-step guide on how to implement this parameter conversion in your Python script and PEST template files, please refer to PEST: Parameter conversion.

Technical note: estimation from multiple initial values

As discussed in Seki et al. (2023), when the WRF parameters are determined first and the HCF parameters (Ks, p, r) or (Ks, p, q) are estimated afterward, it is effective to try multiple initial values for (p, r) or (p, q).

For example, you may use:

which gives a total of 12 initial combinations for (p, r).
